How Granville from New Orleans, Louisiana got their Site Plan for a City Permit.

The Project

Granville needed a site plan for their City Permit in New Orleans, Louisiana. They wanted a fast and easy solution.

The Site Plan Package

Detailed Site Plan - Perfect for
City Permit.
Granville chose our Detailed Site Plan because it offered exactly what their city required.

What Detailed Site Plan Includes:

Property Lines

Lot Dimensions

North Arrow

Scale

Proposed Structures

Porch

Trees

Curb

Driveway

Patio

Walkway

Pool

★★★★★
Efficient!

Worked with MySitePlan and they were very professional & quick to respond to my queries. Turn-around time was less than 24hrs!

Granville S.

Get Your City Permit Approved Fast - See All Packages

SEE ALL SITE PLAN PACKAGES

Requirements For A City Permit

Granville S. needed a Detailed Site Plan to comply with their city's request for a permit in New Orleans. The project involved not just any property but a complex set of over 100-year-old duplexes that had been converted multiple times over the years. These units, particularly Apt. #8 and #9, presented unique challenges due to their unusual shapes and multiple entranceways, stemming from their historical alterations. To address these complexities, they turned to MySitePlan, and Granville provided an old survey of the property to aid in drafting a proper representation.

Project Type

City Permit

Delivery Time

14hrs

Revisions

One

File Type

PDF

PROCESS DETAILS

Drafting An Efficient Site Plan For A City Permit

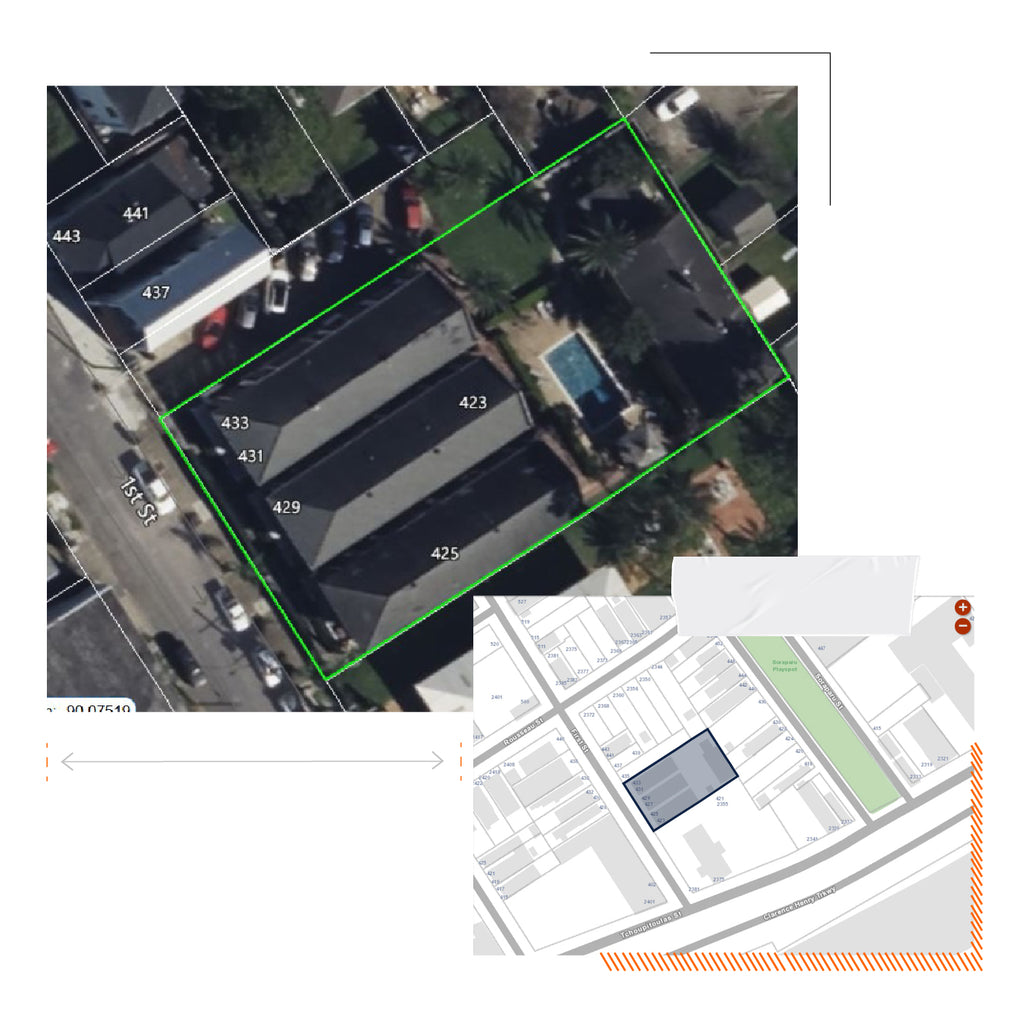

The initial site plan submitted required significant revisions to adequately reflect the numerous add-in entryways and kitchens across the nine units. MySitePlan quickly adapted to these changes, leveraging GIS and Satellite Imagery to ensure that all modifications were captured properly and that the plan met all local zoning and planning requirements. The revisions were not only about adding details but also ensuring that the historical integrity and the current functional usage of the buildings were clearly communicated in the site plan. This detailed attention allowed us to finalize and deliver the revised plan to Granville within just 14 hours.

SOLUTION DETAILS

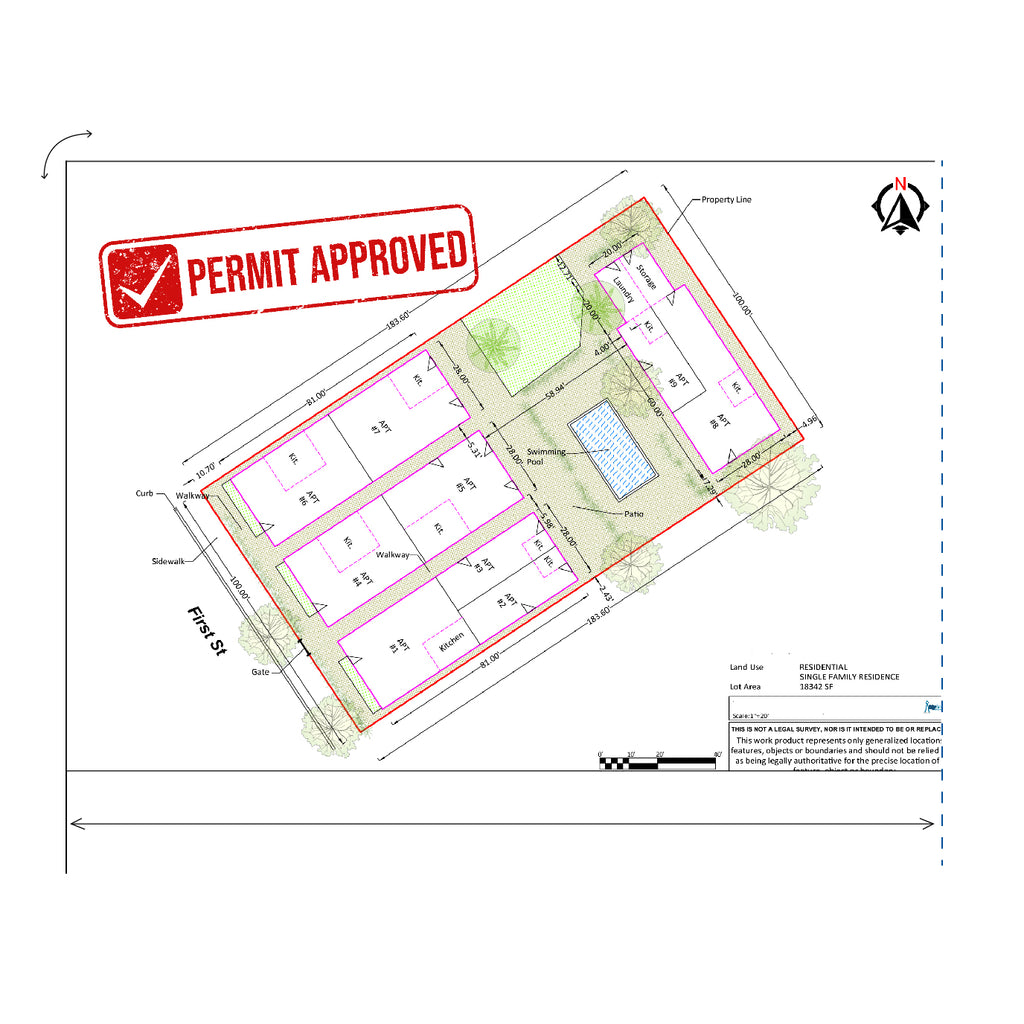

A Detailed Site Plan Approved

At MySitePlan, we are committed to delivering not only quick and detailed site plans but also ensuring a seamless ordering experience. Granville’s successful permit acquisition demonstrates how effectively MySitePlan can navigate challenging scenarios, ensuring that our clients can achieve their goals with minimal delay and maximum confidence.
